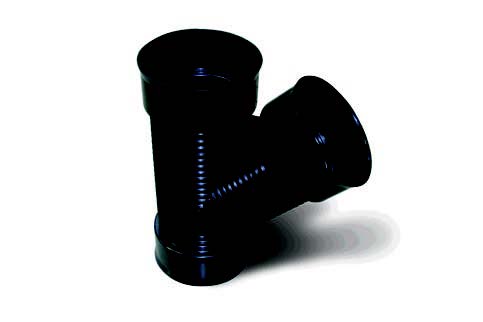

 Fırat Triplex Boru Çıkışlı C Parça | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Kod | Anma Çapı | H mm | L mm | L1 mm | L2 mm | ØD mm | ØD1 mm | ØD2 mm | A mm | B mm |
| 7588200200 | Ø200Ø200 | 569,0 | 104,5 | 100,5 | 100,5 | 235,0 | 198,8 | 235 | 162,0 | 267,2 |
| 7588250200 | Ø250Ø200 | 611,0 | 125,5 | 121,5 | 100,5 | 293,0 | 248,6 | 235 | 152,9 | 267,9 |
| 7588300200 | Ø300Ø200 | 671,0 | 155,5 | 151,5 | 100,5 | 355,0 | 299,8 | 235 | 172,3 | 275,5 |
| 7588400200 | Ø400Ø200 | 775,0 | 207,5 | 203,5 | 100,5 | 470,0 | 399,8 | 235 | 173,0 | 290,4 |
