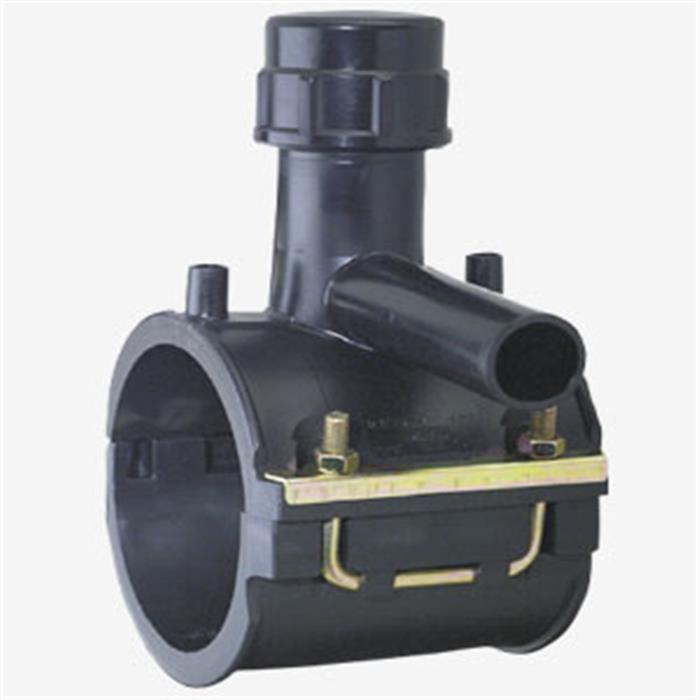

Elektrofüzyon Servis TE
| ||||||||
|---|---|---|---|---|---|---|---|---|

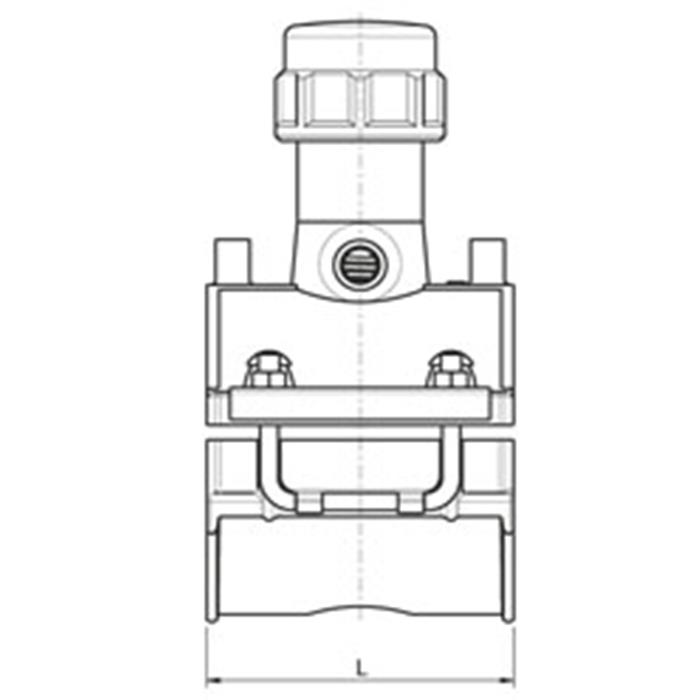

| KOD | dxd1 (mm) | H (mm) | B (mm) | H1 (mm) | H2 (mm) | L (mm) | UC | W g |
| 496304 | 40x20 | 107 | 66 | 7 | 94 | 100 | 290 | 52 |
| 496304 | 40x32 | 121 | 66 | 11 | 94 | 100 | 370 | 52 |
| 496304 | 50x20 | 110 | 76 | 7 | 98 | 100 | 390 | 52 |
| 496304 | 50x25 | 91 | 76 | 10 | 98 | 100 | 390 | 52 |
| 496304 | 50x32 | 122 | 76 | 12 | 98 | 100 | 380 | 52 |
| 496304 | 63x20 | 90 | 100 | 10 | 90 | 118 | 355 | 36 |
| 496304 | 63x25 | 93 | 100 | 12 | 36 | 118 | 434 | 525 |
| 496304 | 63x32 | 99 | 100 | 12 | 90 | 118 | 380 | 40 |
| 496304 | 63x40 | 142 | 100 | 60 | 177 | 118 | 1080 | 40 |
| 496304 | 63x50 | 123 | 100 | 64 | 177 | 118 | 1099 | 40 |
| 496304 | 63x63 | 175 | 100 | 64 | 177 | 118 | 1183 | 16 |
| 496304 | 75x20 | 125 | 117 | 50 | 177 | 118 | 1120 | 16 |
| 496304 | 75x32 | 132 | 117 | 56 | 177 | 118 | 1091 | 16 |
| 496304 | 75x40 | 142 | 117 | 60 | 177 | 118 | 1124 | 16 |
| 496304 | 75x50 | 123 | 117 | 64 | 177 | 118 | 1139 | 16 |
| 496304 | 75x63 | 175 | 117 | 64 | 177 | 118 | 1128 | 16 |
| 496304 | 90x20 | 117 | 126 | 16 | 114 | 118 | 900 | 16 |
| 496304 | 90x25 | 108 | 126 | 16 | 114 | 118 | 1120 | 16 |
| 496304 | 90x32 | 126 | 126 | 16 | 114 | 118 | 1120 | 20 |
| 496304 | 90x40 | 134 | 126 | 21 | 114 | 118 | 1130 | 20 |
| 496304 | 90x50 | 123 | 126 | 64 | 177 | 118 | 1220 | 20 |
| 496304 | 90x63 | 175 | 126 | 64 | 177 | 118 | 1300 | 20 |
| 496304 | 110x20 | 119 | 148 | 16 | 114 | 118 | 964 | 20 |
| 496304 | 110x32 | 127 | 148 | 16 | 114 | 118 | 970 | 14 |
| 496304 | 110x40 | 138 | 148 | 21 | 114 | 118 | 1000 | 14 |
| 496304 | 110x50 | 123 | 148 | 64 | 177 | 118 | 1300 | 20 |
| 496304 | 110x63 | 175 | 148 | 64 | 177 | 118 | 1383 | 20 |
| 496304 | 125x20 | 116 | 162 | 16 | 114 | 118 | 1220 | 20 |
| 496304 | 125x32 | 131 | 162 | 16 | 114 | 118 | 1230 | 12 |
| 496304 | 125x40 | 141 | 162 | 21 | 114 | 118 | 1280 | 12 |
| 496304 | 125x50 | 123 | 162 | 64 | 177 | 118 | 1345 | 15 |
| 496304 | 125x63 | 175 | 162 | 64 | 177 | 118 | 1420 | 15 |
| 496304 | 140x20 | 125 | 180 | 50 | 177 | 118 | 1330 | 15 |
| 496304 | 140x32 | 132 | 180 | 56 | 177 | 118 | 1330 | 12 |
| 496304 | 140x40 | 142 | 180 | 60 | 177 | 118 | 1360 | 12 |
| 496304 | 140x50 | 123 | 180 | 64 | 177 | 118 | 1382 | 12 |
| 496304 | 140x63 | 175 | 180 | 64 | 177 | 118 | 1468 | 12 |
| 496304 | 160x20 | 118 | 199 | 21 | 138 | 118 | 1360 | 12 |
| 496304 | 160x32 | 144 | 199 | 16 | 138 | 118 | 1320 | 12 |
| 496304 | 160x40 | 157 | 199 | 21 | 138 | 118 | 1439 | 12 |
| 496304 | 160x50 | 175 | 199 | 14 | 138 | 118 | 1375 | 10 |
| 496304 | 160x63 | 197 | 199 | 20 | 138 | 118 | 1390 | 10 |
| 496304 | 180x20 | 125 | 219 | 50 | 177 | 118 | 1550 | 10 |
| 496304 | 180x32 | 144 | 219 | 18 | 138 | 118 | 1565 | 10 |
| 496304 | 180x40 | 155 | 219 | 21 | 138 | 118 | 1580 | 10 |
| 496304 | 180x50 | 175 | 219 | 24 | 138 | 118 | 1595 | 10 |
| 496304 | 180x63 | 197 | 219 | 20 | 138 | 118 | 1605 | 10 |
| 496304 | 200x20 | 125 | 202 | 50 | 177 | 176 | 1425 | 10 |
| 496304 | 200x32 | 132 | 202 | 56 | 177 | 176 | 1445 | 10 |
| 496304 | 200x40 | 142 | 202 | 60 | 177 | 176 | 1471 | 10 |
| 496304 | 200x50 | 123 | 202 | 64 | 177 | 176 | 1496 | 8 |
| 496304 | 200x63 | 175 | 202 | 64 | 177 | 176 | 1579 | 8 |
| 496304 | 225x20 | 125 | 227 | 50 | 177 | 176 | 1370 | 8 |
| 496304 | 225x32 | 132 | 227 | 56 | 177 | 176 | 1450 | 8 |
| 496304 | 225x40 | 142 | 227 | 60 | 177 | 176 | 1485 | 8 |
| 496304 | 225x50 | 123 | 227 | 64 | 177 | 176 | 1506 | 8 |
| 496304 | 225x63 | 175 | 227 | 64 | 177 | 176 | 1589 | 8 |
| 496304 | 250x20 | 125 | 252 | 50 | 177 | 176 | 1380 | 8 |
| 496304 | 250x32 | 132 | 252 | 56 | 177 | 176 | 1464 | 8 |
| 496304 | 250x40 | 142 | 252 | 60 | 177 | 176 | 1582 | 8 |
| 496304 | 250x50 | 123 | 252 | 64 | 177 | 176 | 1589 | 8 |
| 496304 | 250x63 | 175 | 252 | 64 | 177 | 176 | 1595 | 8 |
