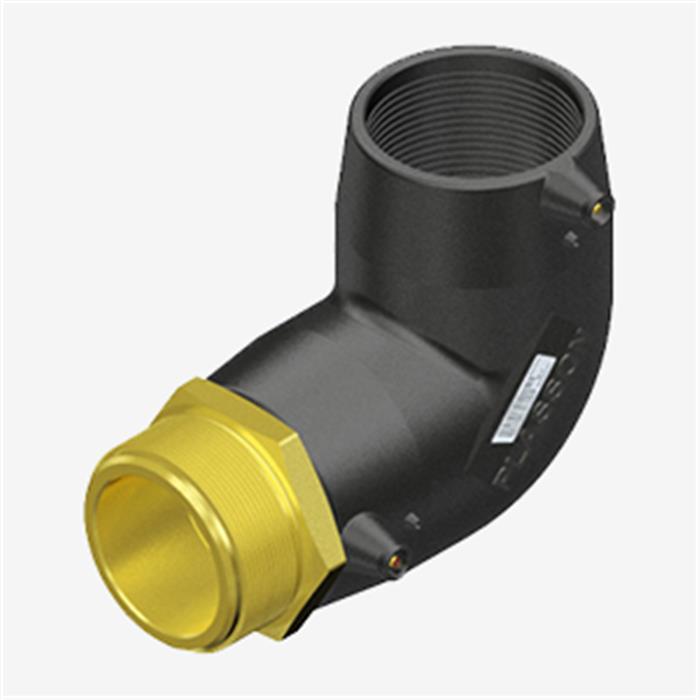

Elektrofüzyon Pirinç Dirsek 90° Adaptör Dış Dişli
| |||||||||
|---|---|---|---|---|---|---|---|---|---|

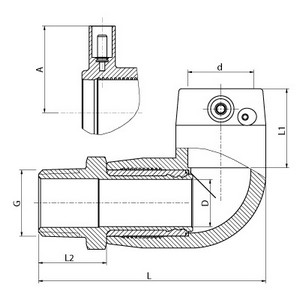

| KOD | d (mm) | D (mm) | R | A (mm) | L (mm) | L1 (mm) | L2 (mm) | UC | W g |
| 492504 | 20 | 14 | 1/2 | 38 | 95 | 35 | 29 | 150 | 153 |
| 492504 | 25 | 19 | 3/4 | 38 | 95 | 37 | 29 | 120 | 168 |
| 492504 | 32 | 23 | 1 1/2 | 43 | 119 | 40 | 36 | 60 | 436 |
| 492504 | 32 | 23 | 1 1/4 | 43 | 119 | 40 | 36 | 60 | 419 |
| 492504 | 32 | 23 | 1 | 43 | 117 | 40 | 34 | 84 | 300 |
| 492504 | 32 | 23 | 3/4 | 43 | 112 | 40 | 29 | 84 | 262 |
| 492504 | 32 | 23 | 1/2 | 43 | 112 | 40 | 29 | 84 | 259 |
| 492504 | 40 | 29 | 2 | 47 | 133 | 44 | 41 | 48 | 725 |
| 492504 | 40 | 29 | 1 1/2 | 47 | 128 | 44 | 36 | 48 | 510 |
| 492504 | 40 | 29 | 1 1/4 | 47 | 128 | 44 | 36 | 48 | 500 |
| 492504 | 40 | 29 | 1 | 47 | 126 | 44 | 34 | 48 | 458 |
| 492504 | 50 | 38 | 2 | 52 | 149 | 48 | 41 | 30 | 806 |
| 492504 | 50 | 38 | 1 1/2 | 52 | 144 | 48 | 36 | 36 | 655 |
| 492504 | 50 | 38 | 1 1/4 | 52 | 144 | 48 | 36 | 36 | 679 |
| 492504 | 50 | 38 | 1 | 52 | 142 | 48 | 34 | 42 | 624 |
| 492504 | 63 | 48 | 2 | 59 | 172 | 57 | 41 | 24 | 1125 |
| 492504 | 63 | 48 | 1 1/2 | 59 | 167 | 57 | 36 | 24 | 1040 |
| 492504 | 63 | 48 | 1 1/4 | 59 | 167 | 57 | 36 | 24 | 985 |
| 492504 | 75 | 59 | 2 1/2 | 62 | 204 | 69 | 46 | 16 | 1649 |
| 492504 | 75 | 59 | 2 | 62 | 199 | 69 | 41 | 16 | 1450 |
