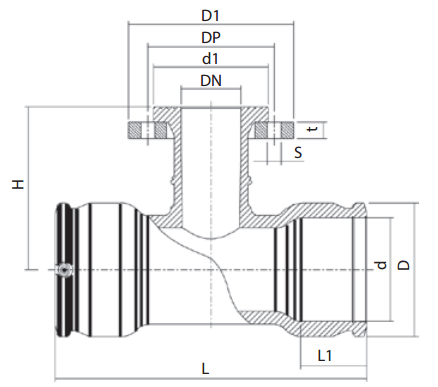

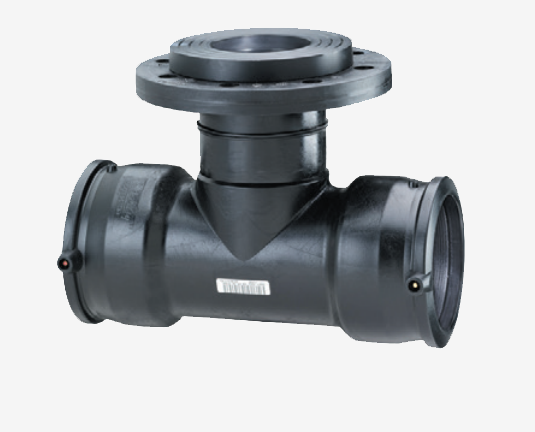

Elektrofüzyon Flanşlı Te | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KOD | dxDNx d (mm) | L (mm) | L1 (mm) | D | H (mm) | A (mm) | D1 (mm) | t (mm) | s (mm) | d1 (mm) | DP (mm) | UC | W g |
| 499404 | 90x80x90 | 294 | 71 | 113 | 165 | 71 | 200 | 20 | 8x18 | 138 | 160 | 8 | 2835 |
| 499404 | 110x80x110 | 326 | 71 | 143 | 181 | 81 | 200 | 20 | 8x18 | 138 | 160 | 6 | 3560 |
| 499404 | 110x100x110 | 326 | 71 | 143 | 181 | 81 | 220 | 22 | 8x18 | 158 | 180 | 6 | 4240 |
| 499404 | 125x80x125 | 382 | 86 | 165 | 190 | 88 | 200 | 20 | 8x18 | 138 | 160 | 4 | 4550 |
| 499404 | 125x100x125 | 382 | 86 | 165 | 190 | 88 | 220 | 22 | 8x18 | 158 | 180 | 3 | 5180 |
| 499404 | 160x80x160 | 440 | 86 | 208 | 210 | 106 | 200 | 20 | 8x18 | 138 | 160 | 3 | 6245 |
| 499404 | 160x100x160 | 440 | 86 | 208 | 210 | 106 | 220 | 22 | 8x18 | 158 | 180 | 3 | 6785 |
| 499404 | 180x100x180 | 422 | 106 | 245 | 225 | 116 | 220 | 22 | 8x18 | 158 | 180 | 1 | 8850 |
| 499404 | 180x80x180 | 422 | 106 | 245 | 225 | 116 | 200 | 20 | 8x18 | 135 | 160 | 2 | 7745 |
| 499404 | 200x100x200 | 451 | 114 | 261 | 245 | 125 | 220 | 22 | 8x18 | 158 | 180 | 1 | 9230 |
| 499404 | 200x80x200 | 451 | 114 | 261 | 240 | 125 | 200 | 20 | 8x18 | 138 | 160 | 1 | 8510 |
| 499404 | 225x100x225 | 494 | 122 | 293 | 260 | 140 | 220 | 22 | 8x18 | 158 | 180 | 1 | 11900 |
| 499404 | 225x80x225 | 494 | 122 | 293 | 255 | 140 | 200 | 20 | 8x18 | 138 | 160 | 1 | 11240 |
| 499404 | 250x100x250 | 538 | 129 | 326 | 275 | 152 | 220 | 22 | 8x18 | 158 | 180 | 1 | 15400 |
| 499404 | 250x80x250 | 538 | 129 | 326 | 270 | 152 | 200 | 20 | 8x18 | 138 | 160 | 1 | 14750 |
