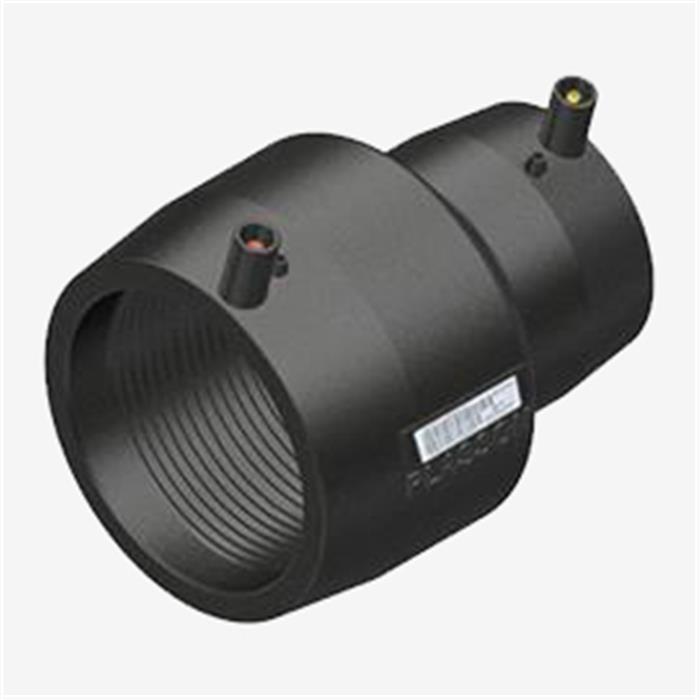

Elekrofüzyon EF Redüksiyon
| |||||||||
|---|---|---|---|---|---|---|---|---|---|

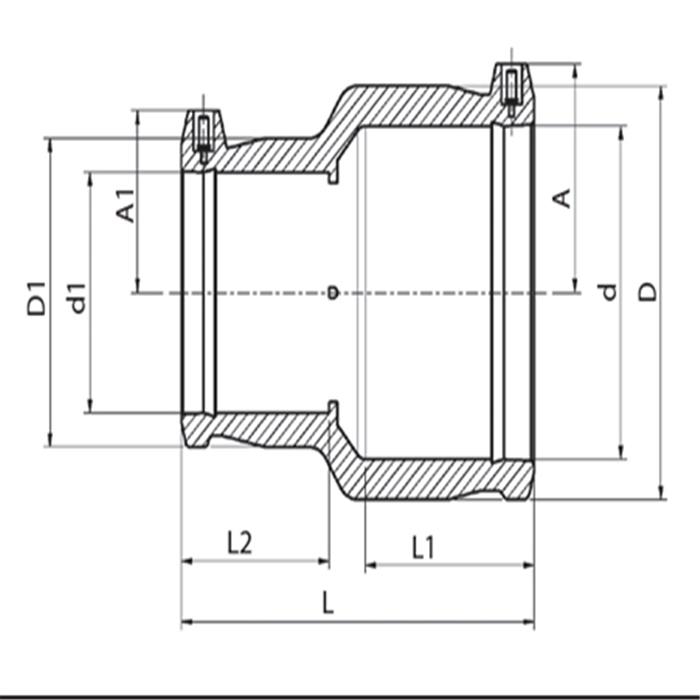

| KOD | dxd1 (mm) | L (mm) | A (mm) | L1 | L2 (mm) | D |
| W g | UC |
| 4901104 | 20*16 | 71 | 39 | 35 | 35 | 36 | 36 | 54 | 480 |
| 491104 | 20*20 | 71 | 39 | 35 | 35 | 36 | 36 | 46 | 480 |
| 491104 | 32*20 | 81 | 43 | 40 | 35 | 45 | 32 | 59 | 360 |
| 491104 | 32*25 | 81 | 43 | 40 | 35 | 45 | 36 | 56 | 360 |
| 491104 | 40*25 | 90 | 47 | 44 | 40 | 56 | 37 | 85 | 200 |
| 491104 | 40*32 | 90 | 47 | 44 | 40 | 56 | 44 | 92 | 160 |
| 491104 | 50*25 | 100 | 52 | 49 | 41 | 68 | 37 | 118 | 160 |
| 491104 | 50*32 | 100 | 52 | 49 | 40 | 68 | 45 | 123 | 128 |
| 491104 | 50*40 | 100 | 52 | 49 | 44 | 68 | 56 | 135 | 128 |
| 491104 | 63*32 | 119 | 59 | 57 | 40 | 82 | 45 | 179 | 96 |
| 491104 | 63*40 | 119 | 59 | 57 | 44 | 82 | 56 | 192 | 96 |
| 491104 | 63*50 | 119 | 59 | 57 | 49 | 82 | 68 | 223 | 80 |
| 491104 | 75*63 | 126 | 66 | 66 | 57 | 98 | 82 | 314 | 65 |
| 491104 | 90*50 | 143 | 78 | 71 | 49 | 116 | 69 | 430 | 54 |
| 491104 | 90*63 | 143 | 78 | 71 | 57 | 116 | 82 | 460 | 44 |
| 491104 | 90*75 | 143 | 78 | 71 | 61 | 116 | 98 | 480 | 41 |
| 491104 | 110*63 | 161 | 84 | 78 | 57 | 139 | 82 | 639 | 32 |
| 491104 | 110*90 | 161 | 84 | 78 | 72 | 139 | 116 | 740 | 23 |
| 491104 | 125*909 | 171 | 88 | 85 | 72 | 158 | 116 | 1019 | 18 |
| 491104 | 125*110 | 171 | 88 | 85 | 78 | 158 | 141 | 1025 | 18 |
| 491104 | 160*90 | 193 | 105 | 94 | 72 | 199 | 116 | 1440 | 12 |
| 491104 | 160*110 | 193 | 105 | 94 | 81 | 199 | 141 | 1520 | 12 |
| 491104 | 160*125 | 195 | 105 | 94 | 85 | 199 | 158 | 1570 | 6 |
| 491104 | 180*125 | 212 | 116 | 103 | 85 | 222 | 158 | 2060 | 6 |
