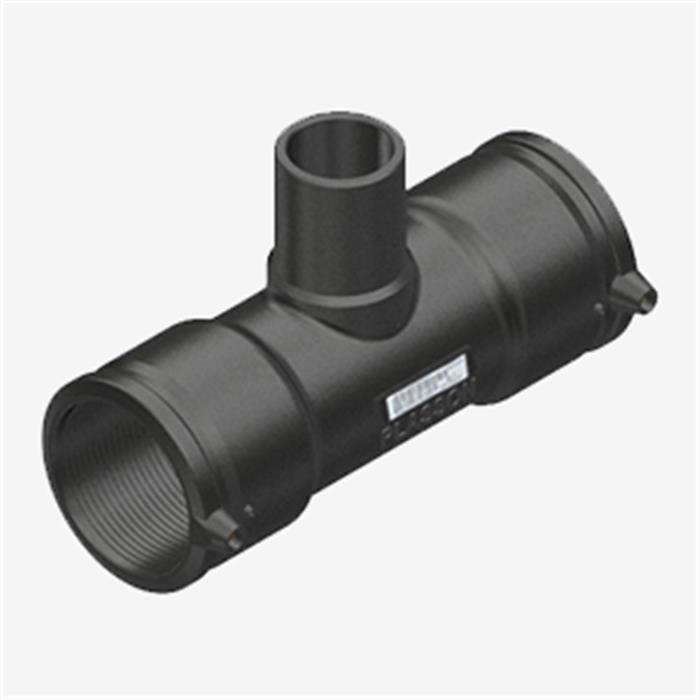

Elektrofüzyon İnegal Te
| |||||||||
|---|---|---|---|---|---|---|---|---|---|

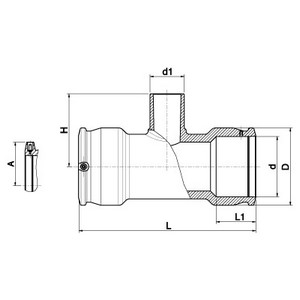

| KOD | d (mm) | D (mm) | d1 (mm) | A | H (mm) | L (mm) | L1 (mm) | UC | W g |
| 491404 | 25 | 44 | 32 | 43 | 74 | 104 | 39 | 168 | 116 |
| 491404 | 25 | 44 | 20 | 43 | 66 | 104 | 39 | 168 | 108 |
| 491404 | 32 | 44 | 25 | 43 | 66 | 104 | 39 | 144 | 91 |
| 491404 | 32 | 44 | 20 | 43 | 66 | 104 | 39 | 144 | 89 |
| 491404 | 40 | 56 | 32 | 47 | 75 | 120 | 43 | 96 | 152 |
| 491404 | 40 | 56 | 25 | 47 | 72 | 120 | 43 | 96 | 150 |
| 491404 | 40 | 56 | 20 | 47 | 72 | 120 | 43 | 96 | 151 |
| 491404 | 50 | 68 | 40 | 52 | 90 | 139 | 48 | 64 | 237 |
| 491404 | 50 | 68 | 32 | 52 | 86 | 139 | 48 | 64 | 228 |
| 491404 | 50 | 68 | 25 | 52 | 78 | 139 | 48 | 64 | 225 |
| 491404 | 50 | 68 | 20 | 52 | 78 | 139 | 48 | 64 | 224 |
| 491404 | 63 | 82 | 20 | 58 | 85 | 167 | 49 | 40 | 348 |
| 491404 | 63 | 82 | 32 | 58 | 93 | 167 | 58 | 32 | 353 |
| 491404 | 63 | 82 | 40 | 58 | 104 | 167 | 58 | 32 | 365 |
| 491404 | 63 | 82 | 50 | 58 | 109 | 167 | 58 | 32 | 381 |
| 491404 | 75 | 96 | 63 | 62 | 122 | 196 | 63 | 26 | 607 |
| 491404 | 90 | 113 | 63 | 71 | 124 | 294 | 68 | 15 | 1050 |
| 491404 | 110 | 143 | 90 | 81 | 147 | 326 | 71 | 8 | 1815 |
| 491404 | 110 | 143 | 63 | 81 | 134 | 326 | 71 | 9 | 1715 |
| 491404 | 125 | 165 | 110 | 88 | 173 | 382 | 86 | 5 | 2859 |
| 491404 | 125 | 165 | 90 | 88 | 161 | 382 | 86 | 5 | 2805 |
| 491404 | 160 | 208 | 125 | 106 | 198 | 440 | 86 | 3 | 4470 |
| 491404 | 160 | 208 | 110 | 106 | 193 | 440 | 86 | 3 | 4450 |
| 491404 | 160 | 208 | 90 | 106 | 180 | 440 | 86 | 3 | 4450 |
| 491404 | 180 | 245 | 160 | 116 | 250 | 422 | 106 | 1 | 6950 |
| 491404 | 180 | 245 | 140 | 116 | 237 | 422 | 106 | 1 | 6610 |
| 491404 | 180 | 245 | 125 | 116 | 225 | 422 | 106 | 2 | 6410 |
| 491404 | 180 | 245 | 110 | 116 | 219 | 422 | 106 | 2 | 6270 |
| 491404 | 180 | 245 | 90 | 116 | 200 | 422 | 106 | 2 | 6090 |
| 491404 | 200 | 261 | 110 | 125 | 210 | 451 | 114 | 2 | 7235 |
| 491404 | 200 | 261 | 90 | 125 | 205 | 451 | 114 | 2 | 7140 |
| 491404 | 225 | 293 | 110 | 140 | 225 | 494 | 122 | 1 | 100000 |
| 491404 | 225 | 293 | 90 | 140 | 220 | 494 | 122 | 1 | 9900 |
| 491404 | 250 | 326 | 90 | 152 | 235 | 538 | 129 | 1 | 13350 |
| 491404 | 250 | 326 | 110 | 152 | 240 | 538 | 129 | 1 | 13400 |
