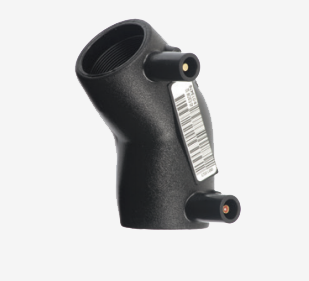

Elektrofüzyon EF Dirsek 45° PN 16
| |||||||
|---|---|---|---|---|---|---|---|

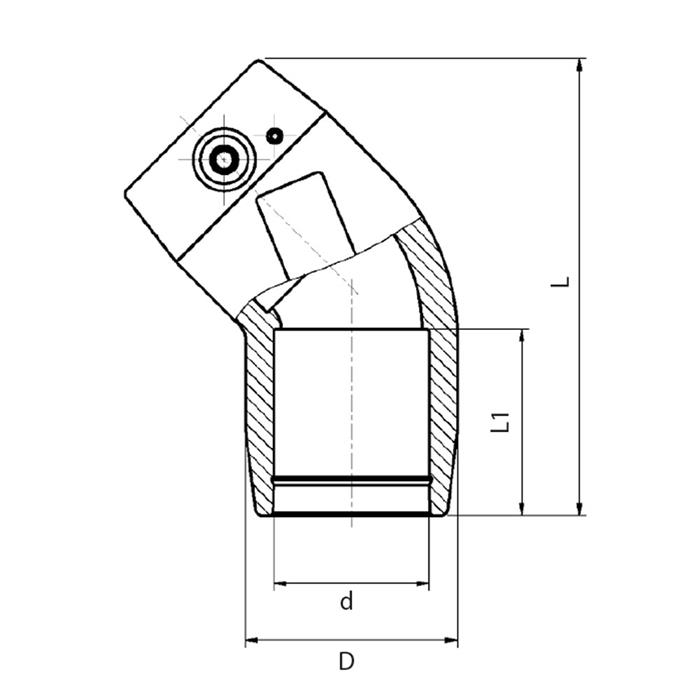

| KOD | d (mm) | L (mm) | L1 (mm) | D | A (mm) | W r | UC |
| 490604 | 32 | 95 | 39 | 45 | 43 | 75 | 240 |
| 490604 | 40 | 108 | 42 | 55 | 46 | 117 | 160 |
| 490604 | 50 | 125 | 49 | 68 | 51 | 181 | 96 |
| 490604 | 63 | 148 | 57 | 81 | 59 | 263 | 60 |
| 490604 | 75 | 180 | 71 | 96 | 62 | 426 | 40 |
| 490604 | 90 | 243 | 75 | 112 | 69 | 759 | 22 |
| 490604 | 110 | 271 | 81 | 143 | 78 | 1269 | 12 |
| 490604 | 125 | 304 | 86 | 165 | 88 | 2030 | 8 |
| 490604 | 140 | 342 | 92 | 182 | 95 | 2471 | 5 |
| 490604 | 160 | 350 | 95 | 209 | 105 | 3990 | 4 |
| 490604 | 180 | 434 | 105 | 244 | 114 | 6150 | 2 |
| 490604 | 200 | 472 | 112 | 261 | 125 | 7050 | 1 |
| 490604 | 225 | 520 | 120 | 294 | 140 | 9800 | 1 |
| 490604 | 250 | 571 | 129 | 326 | 151 | 13400 | 1 |
